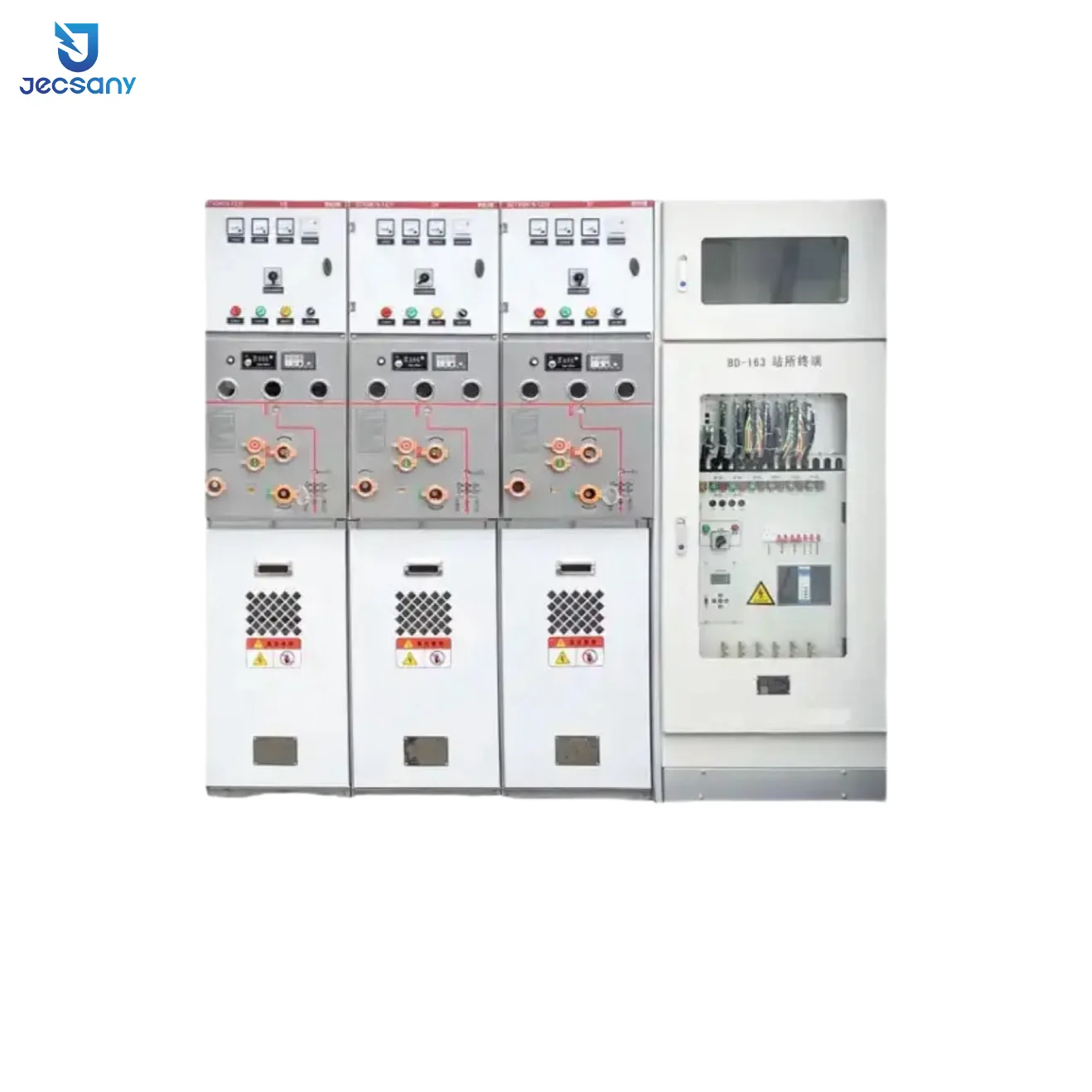

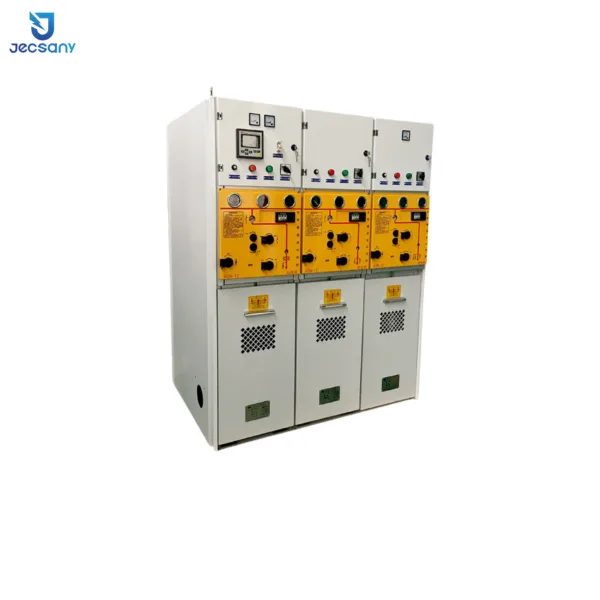

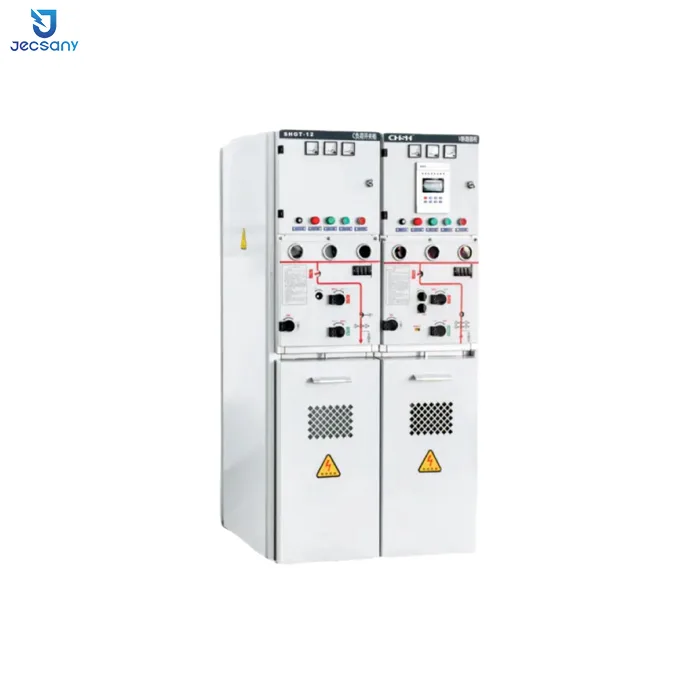

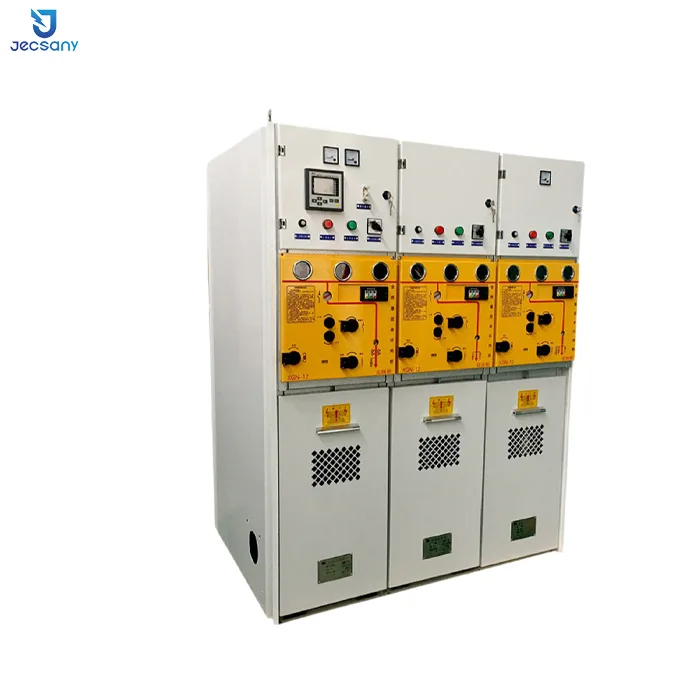

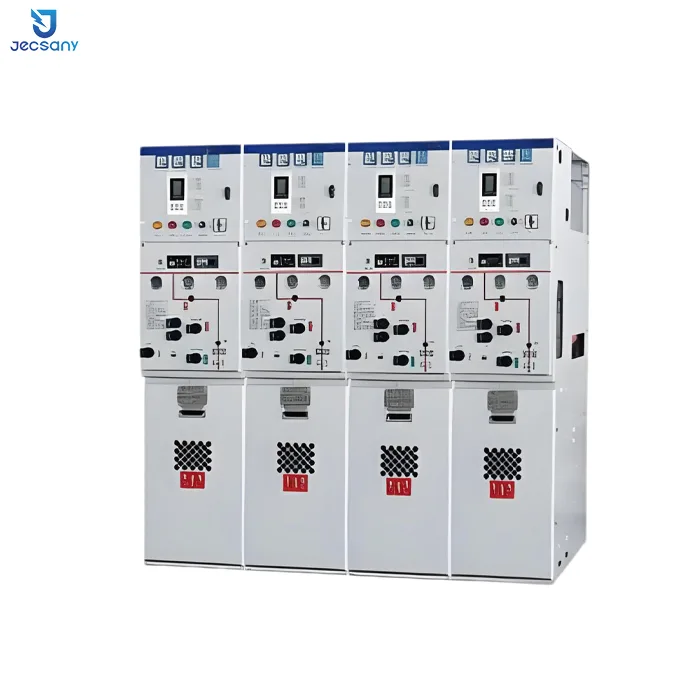

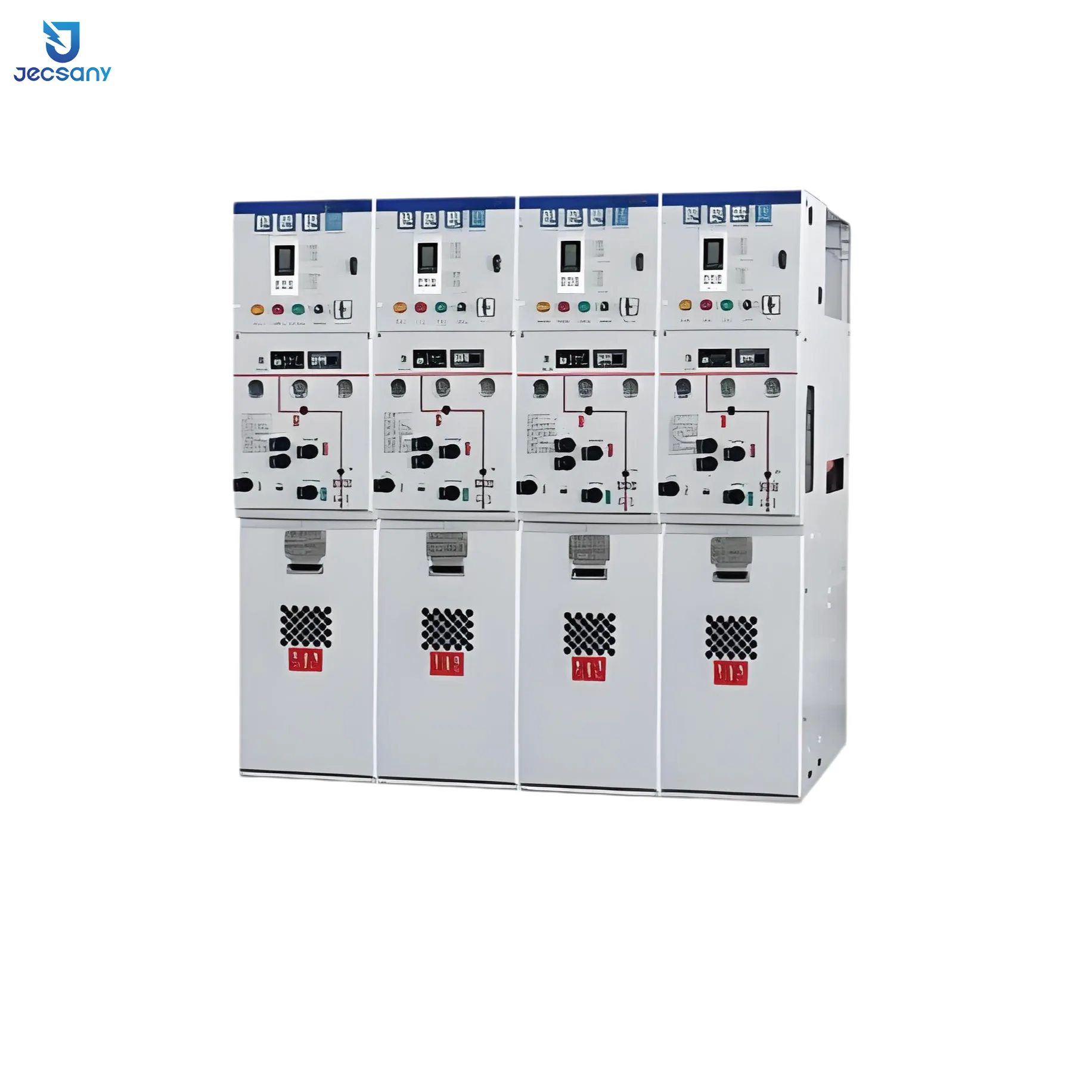

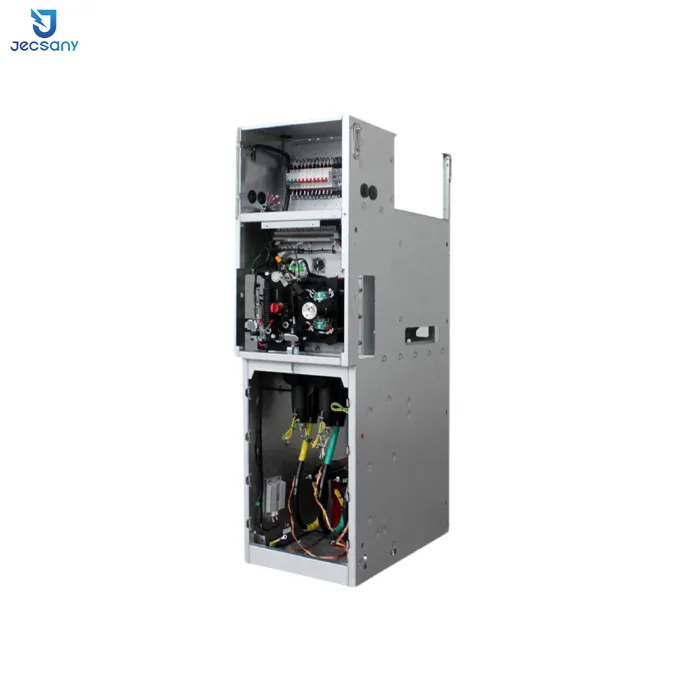

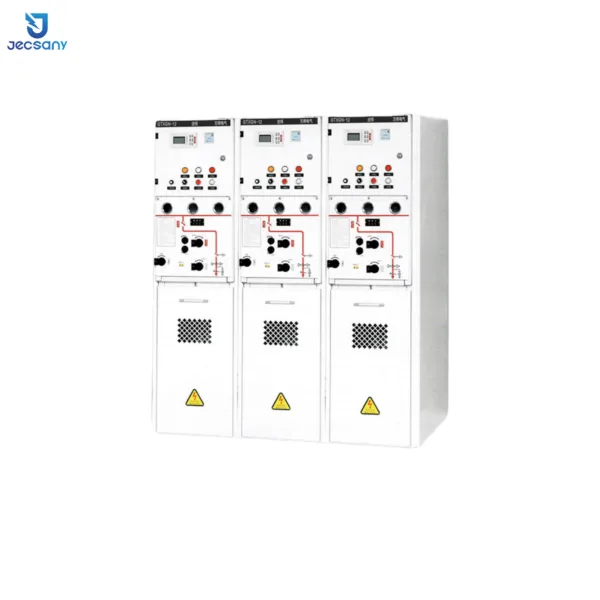

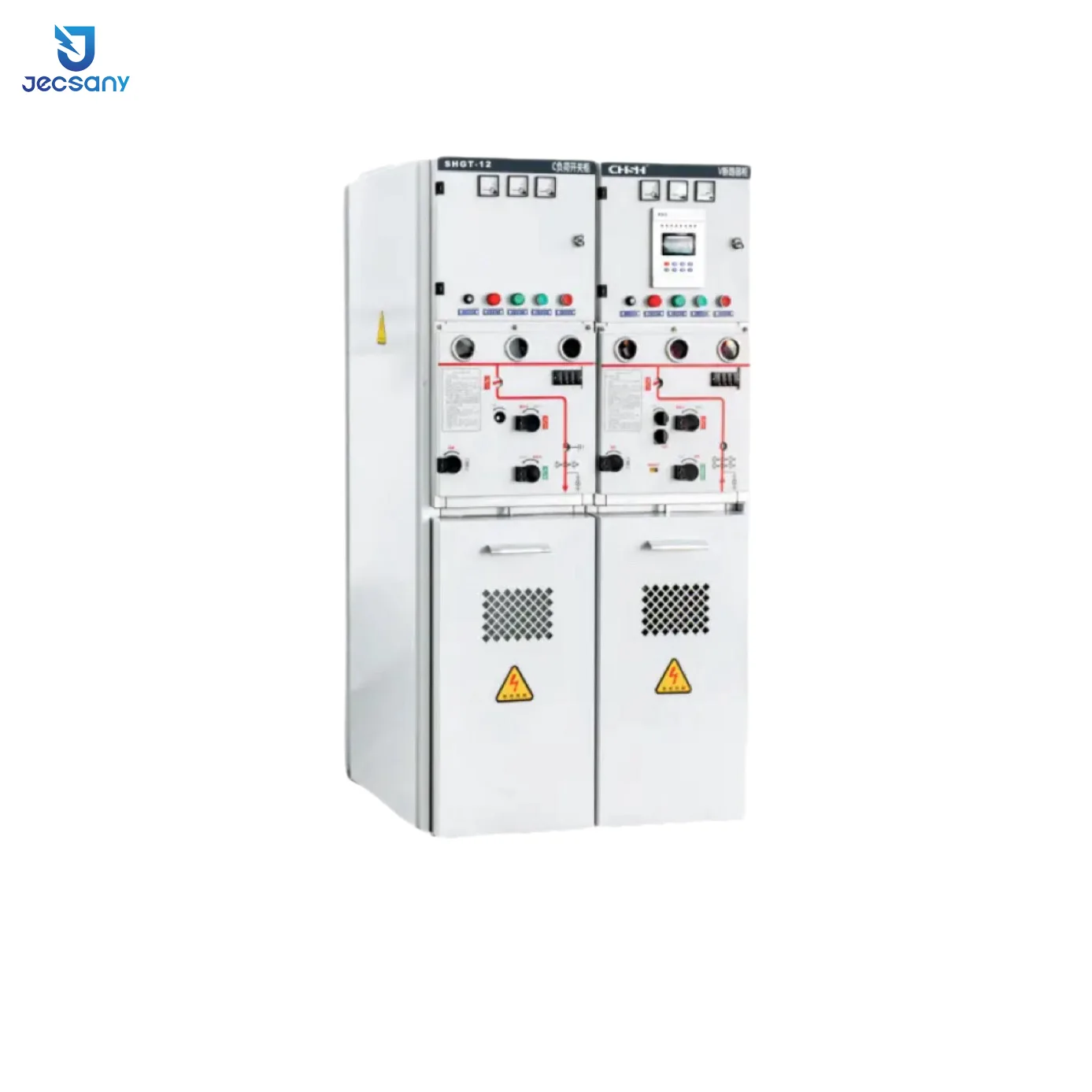

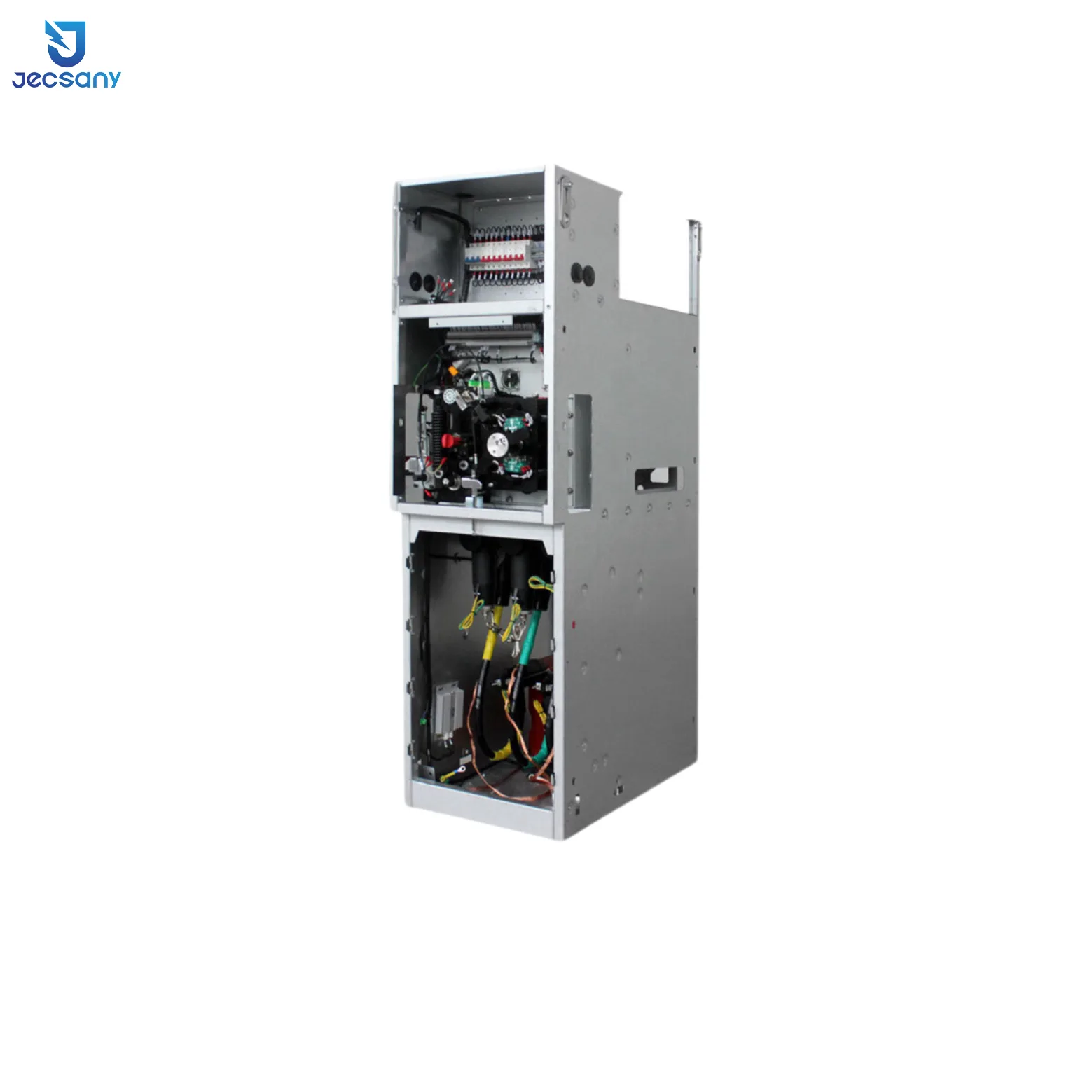

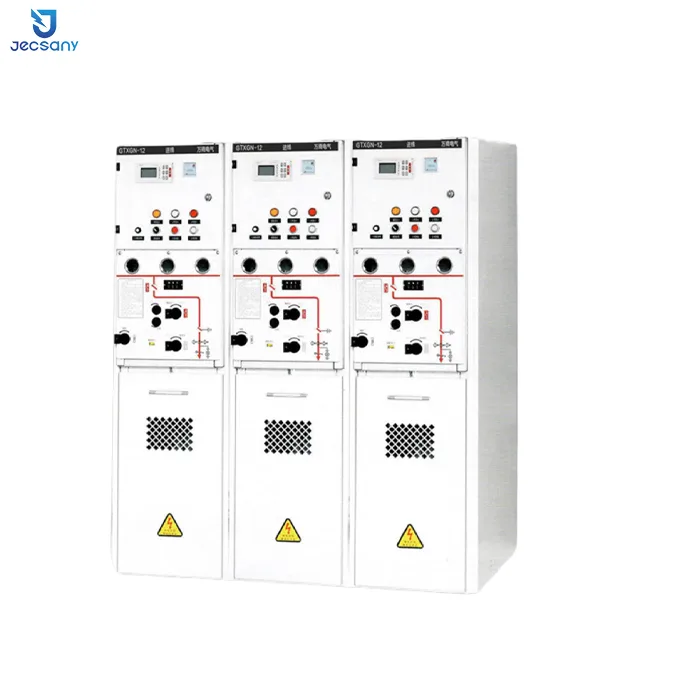

Switchgear is a complete set of equipment used for power distribution, control and protection in power systems, featuring high reliability, modular design and intelligent monitoring, widely used in substations, industrial plants and commercial buildings.
Product Description:
This switchgear series adopts advanced design concepts and manufacturing processes, integrating circuit breakers, disconnectors, protection devices and other electrical components to achieve reliable control and protection of power systems. Compliant with international standards, suitable for various harsh industrial environments.
Product Parameter (Specification)
| Rated voltage | kV | 12 | |||
| Rated frequency | Hz | 50 | |||
| Current rating | A | 630 | 1250 | ||
| Rated insulation level | Power frequency withstand voltage | Fracture | kV | 48 | |
| Fireline to Fireline | kV | 42 | |||
| Fireline to ground | kV | 42 | |||
| Withstand voltage for lightning impulses | Fracture | kV | 85 | ||
| Fireline to Fireline | kV | 75 | |||
| Fireline to ground | kV | 75 | |||
| Rated short-circuit interrupting current(1s) | kA | 25 | 31.5 | ||
| Rated short-time withstand current(4s) | kA | 25 | 31.5 | ||
| Rated peak withstand current(1p) | kA | 63 | 80 | ||
| Rated short-circuit closing current (peak)(1ma) | kA | 63 | 80 | ||
| Enclosure rating | IP4X | ||||
| Operating mode | Spring-loaded energy storage | ||||
Product features：
Packaging：
Our switchgear is packaged in wooden boxes
